Whittle V8 plans?

Discussion in 'Plans' started by Rayanth, May 14, 2012.

  1. May 14, 2012 #1

    Rayanth

    Rayanth

    Rayanth

    Well-Known Member

    Joined:
    Jun 7, 2011
    Messages:
    338
    Likes Received:
    7
    I've seen many references all over the web to the Eric Whittle V-8 plans, and am interested in playing with them in CAD as a new project (I find that I learn a lot just building things in CAD, since I have no workshop yet)

    Many more recent references to these plans suggest that they are freely available. But all of the links that refer to them are dead, and I've seen no other postings.

    Can someone please direct me to where I can find a free copy of these plans, if they are indeed still freely available?

    Thanks,
    - Ryan

  2. May 14, 2012 #2

    gmac

    gmac

    gmac

    Well-Known Member

    Joined:
    Mar 19, 2008
    Messages:
    344
    Likes Received:
    14
    Ryan;

    Sign in to Yahoo groups "WhittleV8" and look under "Files". At one time they were also posted on the Model Engineer Magazine website.

    Cheers Garry

  3. May 14, 2012 #3

    GailInNM

    GailInNM

    GailInNM

    Administrator Staff Member Administrator

    Joined:
    Feb 17, 2008
    Messages:
    2,134
    Likes Received:
    232
  4. May 14, 2012 #4

    Rayanth

    Rayanth

    Rayanth

    Well-Known Member

    Joined:
    Jun 7, 2011
    Messages:
    338
    Likes Received:
    7
    Thank you folks, I was misled by the group's description to believe they wouldn't have them, as they are a group for those already building whittles by their description. I have requested registration.

  5. May 14, 2012 #5

    blighty

    blighty

    blighty

    Well-Known Member

    Joined:
    May 3, 2011
    Messages:
    366
    Likes Received:
    44
  6. May 15, 2012 #6

    Rayanth

    Rayanth

    Rayanth

    Well-Known Member

    Joined:
    Jun 7, 2011
    Messages:
    338
    Likes Received:
    7
    aye, but it seemed silly to buy something that was widely reported to be free.

  7. May 15, 2012 #7

    blighty

    blighty

    blighty

    Well-Known Member

    Joined:
    May 3, 2011
    Messages:
    366
    Likes Received:
    44
    good point ;)

  8. May 15, 2012 #8

    Blogwitch

    Blogwitch

    Blogwitch

    Ex Bogstandard

    Joined:
    Dec 26, 2008
    Messages:
    3,631
    Likes Received:
    617
    Look at your PM's

    John

  9. Jun 20, 2012 #9

    Nsomnia

    Nsomnia

    Nsomnia

    New Member

    Joined:
    Dec 29, 2010
    Messages:
    4
    Likes Received:
    0
    What are the chances of getting a copy my way? Much appreciated.

  10. Jun 20, 2012 #10

    abby

    abby

    abby

    Well-Known Member

    Joined:
    Apr 14, 2009
    Messages:
    337
    Likes Received:
    78

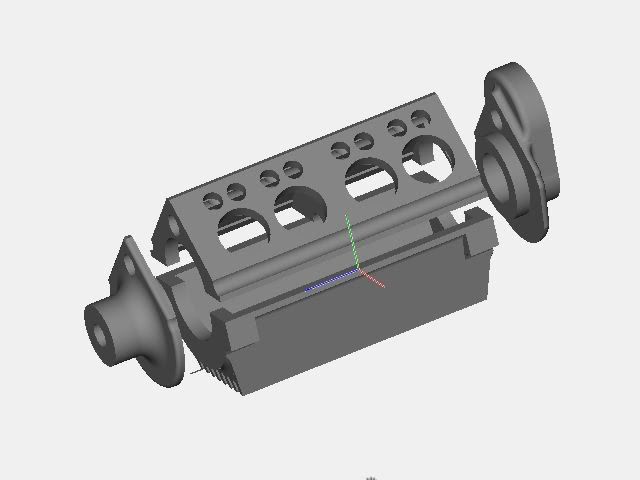

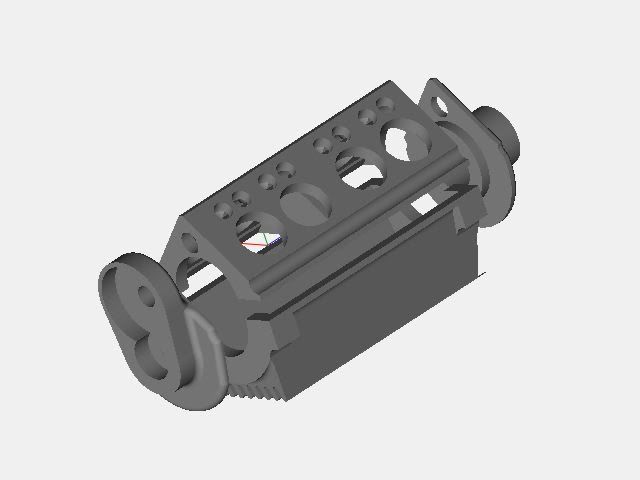

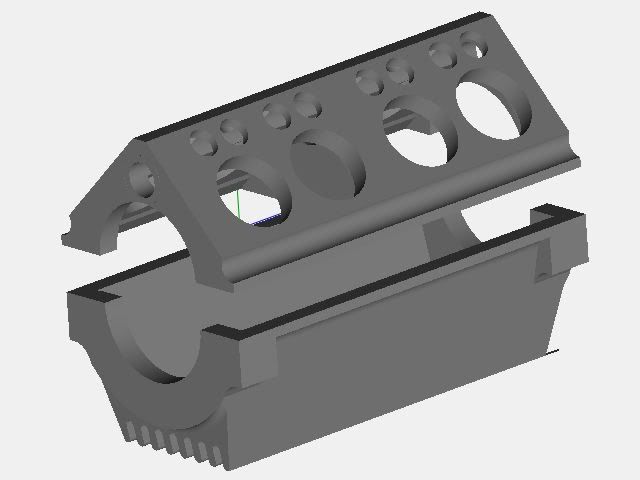

    Some time ago I thought that it might be a good project to produce a set of castings for this engine.
    I did the 3D modelling for the main castings
    [​IMG]
    [​IMG]
    [​IMG]
    but other commitments forced the project onto a back burner.
    If there was enough interest it would not take much to get the project restarted.
    The castings would be lost wax from rapid prototyped patterns and could be in aluminium or perhaps brass/bronze if prefered.
    Any comments.​

  11. Jun 26, 2012 #11

    sprocket1597

    sprocket1597

    sprocket1597

    Member

    Joined:
    Mar 22, 2011
    Messages:
    7
    Likes Received:
    2
    Ive had a go at modeling this too....



  12. Jun 26, 2012 #12

    gadabout

    gadabout

    gadabout

    Active Member

    Joined:
    Nov 11, 2009
    Messages:
    36
    Likes Received:
    6
    If you ever do the castings then please I would like at least one set!

    Mark

  13. Jun 26, 2012 #13

    xpylonracer

    xpylonracer

    xpylonracer

    Well-Known Member

    Joined:
    Dec 23, 2010
    Messages:
    218
    Likes Received:
    51
    Why mess around with castings when all parts can be machined from more consistent quality bar stock ?

    Rgds, Emgee

  14. Jun 26, 2012 #14

    xpylonracer

    xpylonracer

    xpylonracer

    Well-Known Member

    Joined:
    Dec 23, 2010
    Messages:
    218
    Likes Received:
    51
    If you want to see more models of Whittle V8 parts follow this link:

    http://f1.grp.yahoofs.com/v1/AGzpT2...arTy6cTpX9R8Cl3fcNlo/Marcus/Crankcase V8.pdf

    Sample File of model the crankcase below, use Adobe Reader 9 or better to open and click on "simulate box", the model can then be moved around for total viewing, leave "view" as default to slow movements down. Be patient when opening/simulate as can take up to a minute.

    Rgds, Emgee


    View attachment Crankcase V8.pdf

    View attachment lower crankcase.pdf

  15. Jun 26, 2012 #15

    ShedBoy

    ShedBoy

    ShedBoy

    Senior Member

    Joined:
    May 13, 2011
    Messages:
    792
    Likes Received:
    34
    Some prefer the look of cast parts, some like the casting journey, some like the challenge. I like castings and may be interested if the price was right.

    Brock

  16. Jun 26, 2012 #16

    steamer

    steamer

    steamer

    Well-Known Member

    Joined:
    Nov 30, 2007
    Messages:
    5,406
    Likes Received:
    26
    I know the front bottom corner of the sump is REALLY thin! Can't help but wonder if you would need to cast that thicker and machine it.

    Dave

  17. Jun 26, 2012 #17

    abby

    abby

    abby

    Well-Known Member

    Joined:
    Apr 14, 2009
    Messages:
    337
    Likes Received:
    78
    "Why mess around with castings when all parts can be machined from more consistent quality bar stock ?"
    Is this a statement or a question ?
    Some build models because the entertainment is in the building , the longer it takes the more entertainment.
    Others want the product , and for them spending several hours hacking something from a lump of metal that will eventually represent a part that in full scale was a casting would appear to be pointless.
    In addition features can be incorporated into castings that would be beyond the average home machinist to reproduce.
    As for more consistency ....... castings are as consistent as the design requires , that's why they are used for full sized engines.
    Accuracy........ this prototype casting for a pipe end cap is 50mm diameter and has a fine metric thread.

    [​IMG]

    It screwed onto the pipe correctly with no further work required other than sprue removal.

    Rapid prototyping is now becoming well within the reach of model engineers , 3D CAD software is readily available at prices so low .....2D/3D ViaCad for around 100 USD .... it is not worth pirating.
    This steam turbine generator end cover in 1" scale cost less than 20 USD for the pattern

    [​IMG]

    How many hours would be required to produce it by more traditional methods ?

    I have the greatest respect for the enthusiast who makes "everything from solid" but , using castings , beautiful working engines are well within the reach of those with less skill , time or both.

    Just my view of course and no offence intended ;)



  18. Jun 26, 2012 #18

    steamer

    steamer

    steamer

    Well-Known Member

    Joined:
    Nov 30, 2007
    Messages:
    5,406
    Likes Received:
    26
    Oh no doubt Abby....just thinking of the usual sand casting tolerances for shift. The key to this one would be the pattern work. If the pattern was made to very high quality, I don't see why it can't be done.

    Dave

  19. Jun 26, 2012 #19

    abby

    abby

    abby

    Well-Known Member

    Joined:
    Apr 14, 2009
    Messages:
    337
    Likes Received:
    78
    Steamer it states clearly in my first reply that the castings would be lost-wax ::)
    Dan.

  20. Jun 26, 2012 #20

    steamer

    steamer

    steamer

    Well-Known Member

    Joined:
    Nov 30, 2007
    Messages:
    5,406
    Likes Received:
    26
    ok
