Mills 1.3cc diesel - Plans by Ron Chernich from Model Engine Builder magazine

Discussion in 'A Work In Progress' started by Metal Mickey, Jul 12, 2008.

  1. Jul 12, 2008 #1

    Metal Mickey

    Metal Mickey

    Metal Mickey

    Well-Known Member

    Joined:
    Jul 5, 2008
    Messages:
    614
    Likes Received:
    5
    Hello, thought I would share with you the progress of the model diesel engine I am building from the article and plans of Ron Chernich (Australia) he published in issue 1 of Model Engine Builder magazine. I started in January this year. My progress depends on the time I can get in the workshop and how fit I am (excuses I know!) The build is documented on my website (along with all the other projects I have done this year) http://www.mikes-models.com I hope the photo's load as this is my first time.....

    [​IMG]
    about to start turning the front taper.....

    [​IMG]

    Where I have got to at the moment........

    [​IMG]

    Made 2 fuel tanks and tops. One for a reader of my website and the other for mine.

    [​IMG]

    Turning the radius on the end using the method described by Ron Chernich

    [​IMG]

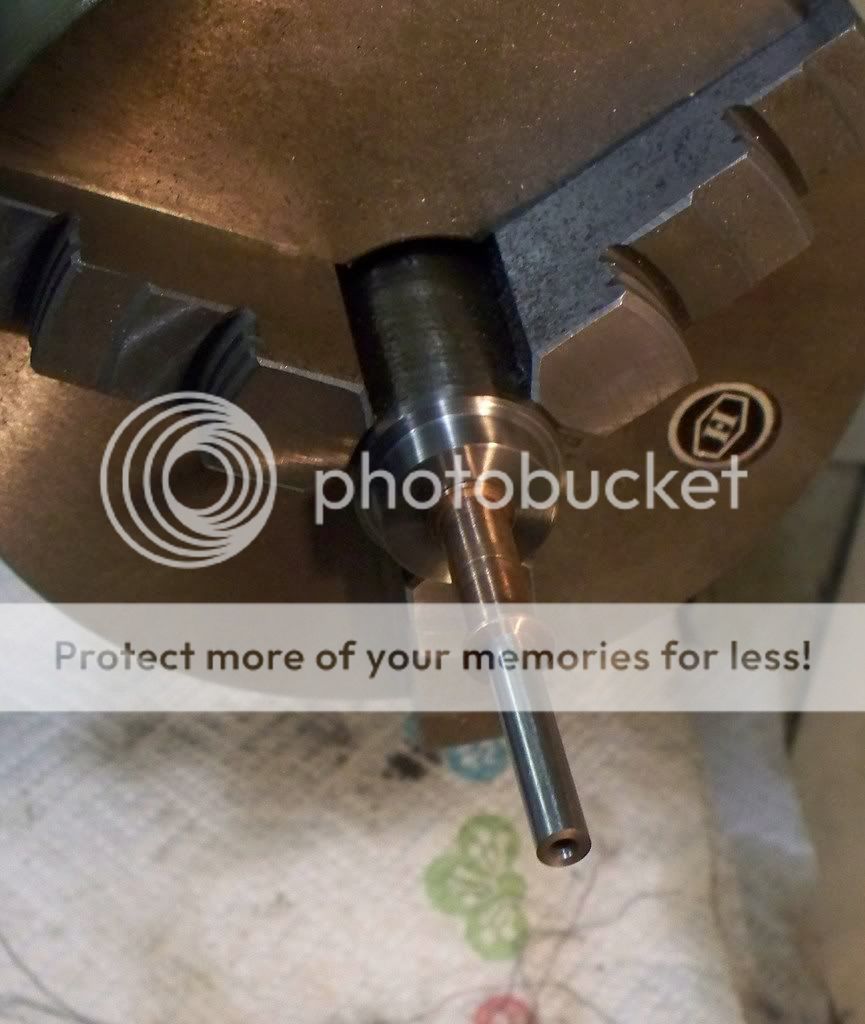

    Where I am now and I have jsut started to make the crankshaft.......more to follow......

    And here they are......getting on with the crankshaft and the prop nut.....

    [​IMG]
    the two phosphur bronze bushes trial fitted to crankshaft blank..

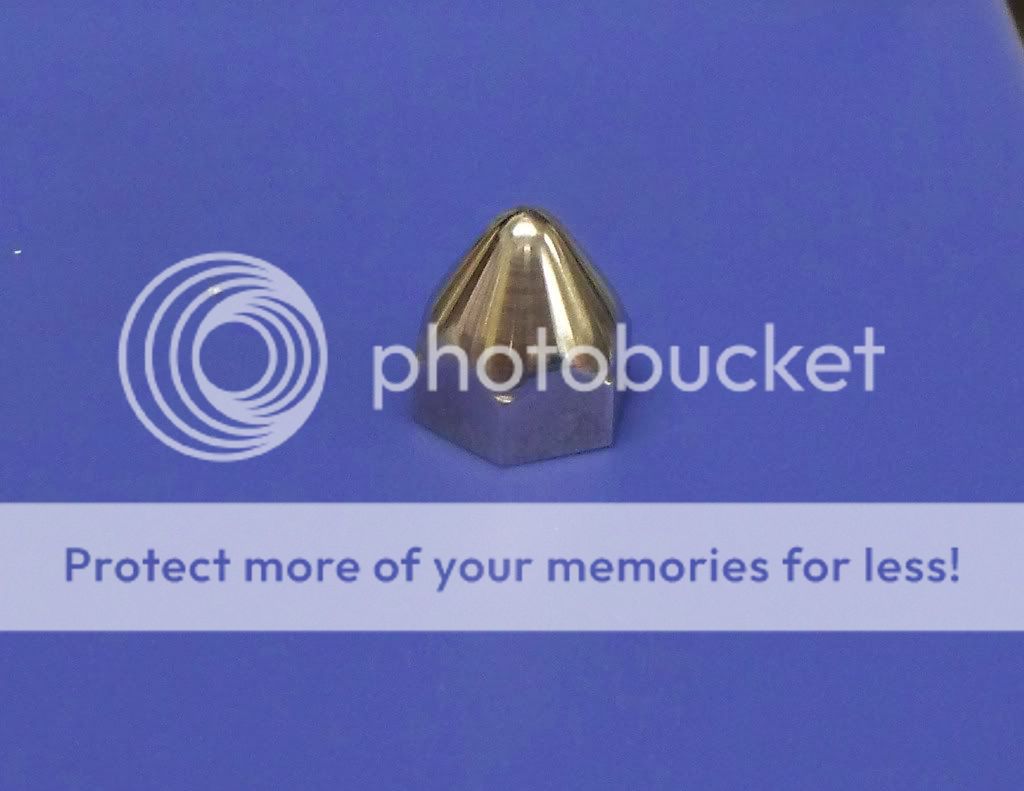

    [​IMG] the prop nut....

    [​IMG] why do we always trial fit to see what its going to look like when finished! (well at least I do......)

    [​IMG]

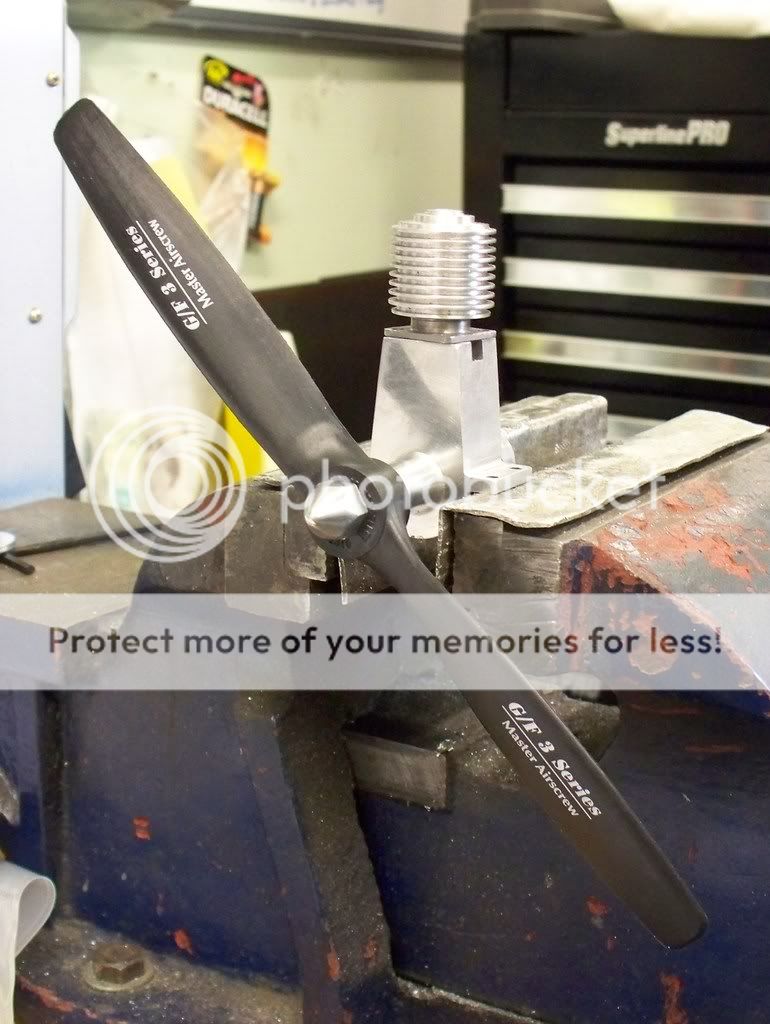

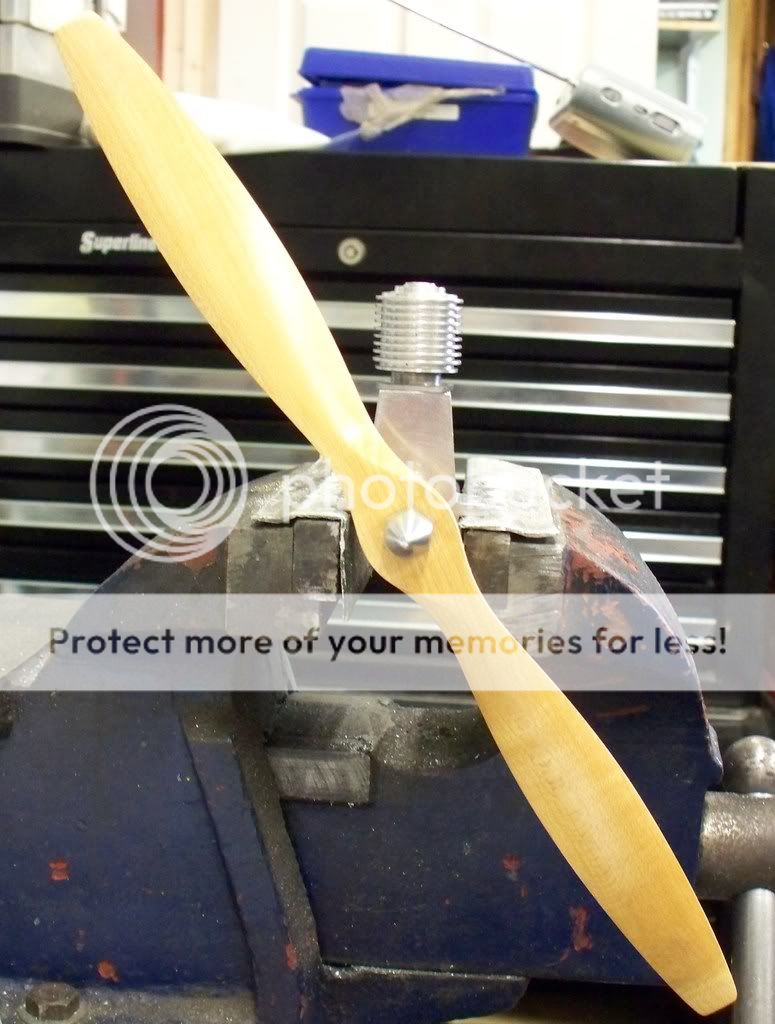

    Ron Chernich, the designer of this engine says it will swing a 12" wooden prop.......well it looks big to me!
