Default Box Tool aka Small diameter turning tool

On another thread, Cedge asked Tel to show details of a tool for turning small diameters. As I am at a 'loose end' at work I thought I would submit a link to one I've seeen for sale by one of the 'usual supect' UK ME suppliers:

http://www.chronos.ltd.uk/cgi-local/sh000001.pl?REFPAGE=http%3a%2f%2fwww%2echronos%2el td%2euk%2f&WD=sdtt&PN=Myford_Lathe_Compatible_Aces sories%2ehtml%23aXC10_2e_2e_2e_2e#aXC10_2e_2e_2e_2 e

No affiliation with seller but have bought several items from them over the years.

Hope this is of help to someone

Al



__________________

Life should not be a journey to the grave with the intention of arriving safely in a well preserved body, but rather a broadside skid in, thoroughly used up, totally worn out and loudly proclaiming 'Wow, What a Ride!'

DickDastardly40 is offline

Reply With Quote Quick reply to this message
Old 10-16-2008, 01:09 PM   #2
Twinsquirrel

Twinsquirrel's Avatar

Join Date: Jun 2008
Posts: 227
Liked 6 Times on 6 Posts

Default Re: Box Tool aka Small diameter turning tool

Hey Al,

I get a cookie error when I click on your link, is this the tool you mean?



If you need to find the listing at chrono the tools reference number is xc10

David



__________________
Twinsquirrel is offline

Reply With Quote Quick reply to this message
Old 10-16-2008, 01:22 PM   #3
DickDastardly40

DickDastardly40's Avatar

Join Date: Oct 2007
Posts: 309
Liked 12 Times on 12 Posts

Default Re: Box Tool aka Small diameter turning tool

Dave,

The link works for me, (I did check before posting too). Regret I can't see your picture due to work IT restrictions but the XC10 reference is correct; putting SDTT into the chronos site seach brings it out too.

Thanks for pointing out the potential error to others.

Al

__________________

Life should not be a journey to the grave with the intention of arriving safely in a well preserved body, but rather a broadside skid in, thoroughly used up, totally worn out and loudly proclaiming 'Wow, What a Ride!'

DickDastardly40 is offline

Reply With Quote Quick reply to this message
Old 10-16-2008, 03:39 PM   #4
BobWarfield

BobWarfield's Avatar

Join Date: Dec 2007
Posts: 1,151
Liked 32 Times on 32 Posts

Default Re: Box Tool aka Small diameter turning tool

Box tools can be made or bought. Think of a follower rest built into the toolholder, or in some cases just a special purpose follower.

Here is a Swiss lathe box tool:



Two rollers to support the work. Note that you have to make your cut in one pass on that one!

Here is one where the rollers are bolted to the saddle:



Frank Ford has a nice one on his site:



And here is another interesting specimen:



You get the idea!


__________________

Try G-Wizard Machinist's Calculator for free:
http://www.cnccookbook.com/CCGWizard.html

BobWarfield is offline

Reply With Quote Quick reply to this message
Old 10-16-2008, 06:18 PM   #5
tel

tel's Avatar

Join Date: Feb 2008
Posts: 3,303
Liked 105 Times on 101 Posts
Likes Given: 6

Send a message via Yahoo to tel
Default Re: Box Tool aka Small diameter turning tool

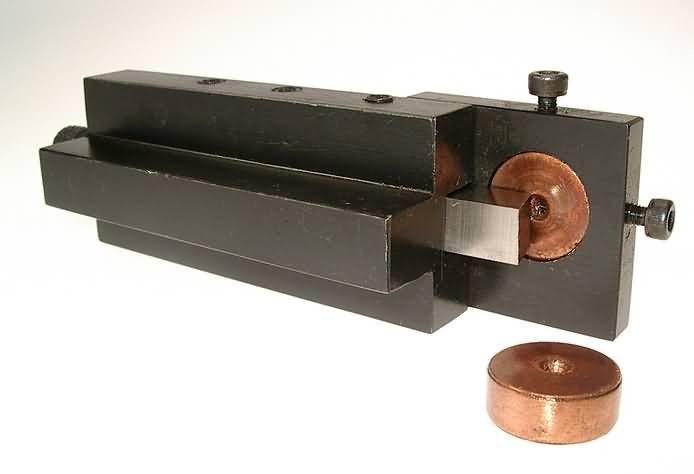

This is my version









__________________

Tel

I come from Australia
That's my native land
Where a bird in the bush
Is worth two in the hand

tel is offline

Reply With Quote Quick reply to this message
Old 10-16-2008, 07:03 PM   #6
CrewCab

Join Date: Apr 2008
Posts: 1,177
Liked 31 Times on 31 Posts

Default Re: Box Tool aka Small diameter turning tool

Tel ............ ................ excellent, I take it you use different size bushes depending on the required size of the "end product" ......... tell the 'ed Wombat you deserve a raise mate

CC

__________________
CrewCab is offline

Reply With Quote Quick reply to this message
Old 10-16-2008, 07:26 PM   #7
tel

tel's Avatar

Join Date: Feb 2008
Posts: 3,303
Liked 105 Times on 101 Posts
Likes Given: 6

Send a message via Yahoo to tel
Default Re: Box Tool aka Small diameter turning tool

Thanks mate!

Yes, the size of the stock dictates the bush size required. The only restriction is that you have to be able to make the reduction in one pass. Very handy for making small screws & rivets tho'.

In passing, for small stuff like this I usually use brazing rods as stock, available in a range of sizes, in manganese and tobin bronze and cheaper by far than the 'usual suspects'.

__________________

Tel

I come from Australia
That's my native land
Where a bird in the bush
Is worth two in the hand

tel is offline

Reply With Quote Quick reply to this message
Old 10-16-2008, 07:56 PM   #8
CrewCab

Join Date: Apr 2008
Posts: 1,177
Liked 31 Times on 31 Posts

Default Re: Box Tool aka Small diameter turning tool

Quote:
Originally Posted by CrewCab
different size bushes depending on the required size of the "end product"
Actually that's wrong isn't it ........... the bush is dictated by the diameter of the material being fed, and as you say you have to reduce it in one pass, so several bushes .......... varying diameters, (in small steps) would be useful ....... it's slowly sinking in Tel

CC
__________________
CrewCab is offline

Reply With Quote Quick reply to this message
Old 10-16-2008, 08:16 PM   #9
greenie
Guest

Posts: n/a
Default Re: Box Tool aka Small diameter turning tool



I can see that you have adapted it from a BOX tool, now how do you part-off the finished bit, when you got that fixed to the cross slide?

If you had made it so that it was fixed/adapted to fit to the tailstock, then the parting-off tool would still be able to be used.

Made up these two little jiggers to fit to a Unimat 3 tailstock, they do the same thing, I use lots of 10 BA and 12 BA bolts, With these in use on the tailstock, then the parting-off tool can still be used. Use the bronze rod as well, it's sure the cheapest way to go.




__________________


Reply With Quote Quick reply to this message
Old 10-16-2008, 10:43 PM   #10
Cedge

Cedge's Avatar

Join Date: Jul 2007
Posts: 1,730
Liked 49 Times on 49 Posts
Likes Given: 2

Default Re: Box Tool aka Small diameter turning tool

Greener
We're talking tiny rod. A pair of side cutters do the job quite well. 1/8 inch Bronze rod is $9.99 for 21 feet in Northern Tools' welding supply area. Picked some up a few weeks back. You're right....very handy to have around.

Thanks Tel and all... thats the tool and its nice to see the variations. I wonder if one could mount a small die right on the tool and turn it straight to threaded rod.

Steve
